Plastic PVC UPVC CPVC Pipe Making Machine
PVC pipe extrusion line is mainly used in the production of pressure water pipes, agriculture irrigation, building or city drainage and Sewage and constructional plumbing cable laying etc.

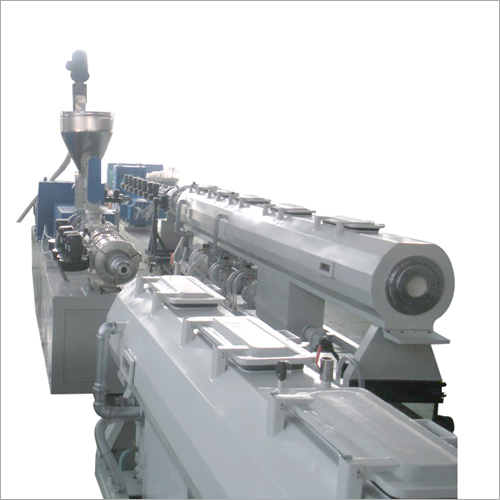

The unit consists of Conical twin screw extruder, PVC pipe mould-Vacuum calibration tank-Haul-off machine-Planetary Saw Cutting machine-Tripping table/Belling machine. Producing pipe diameter range: 160mm-400mm. And the line can be equipped with comptroller thickening instrument, computer ink-jet printer, crusher, shredder, pulverizer ,water chiller, air compressor etc. to achieve the production and manufacture of high-grade tubing. Advanced design for screws and barrel supplies powerful safeguard for the PVC plasticization.
Main parameter of pvc pipe plastic machine
Mode
| Pipe range (mm) | extruders
| Max. output (kg/h) | Max. speed (m/min) | Total power (kw) | Line length (m) |
PVC-50x2 | 16-50 | SJSZ51/105 | 150 | 6m | 60w | 20m |
PVC-63 | 16-63 | SJSZ45/90 | 120 | 10m | 45w | 20m |
PVC-110 | 50-110 | SJSZ51/105 | 150 | 6m | 60w | 24m |
PVC-160 | 63-160 | SJSZ65/132 | 300 | 5m | 100w | 24m |
PVC-250 | 110-250 | SJSZ80/156 | 400 | 3.5m | 120w | 28m |
PVC-315 | 160-315 | SJSZ 80/156 | 400 | 3m | 160w | 28m |
PVC-450 | 250-450 | SJSZ 92/188 | 700 | 1.5m | 200w | 36m |
![]() |
